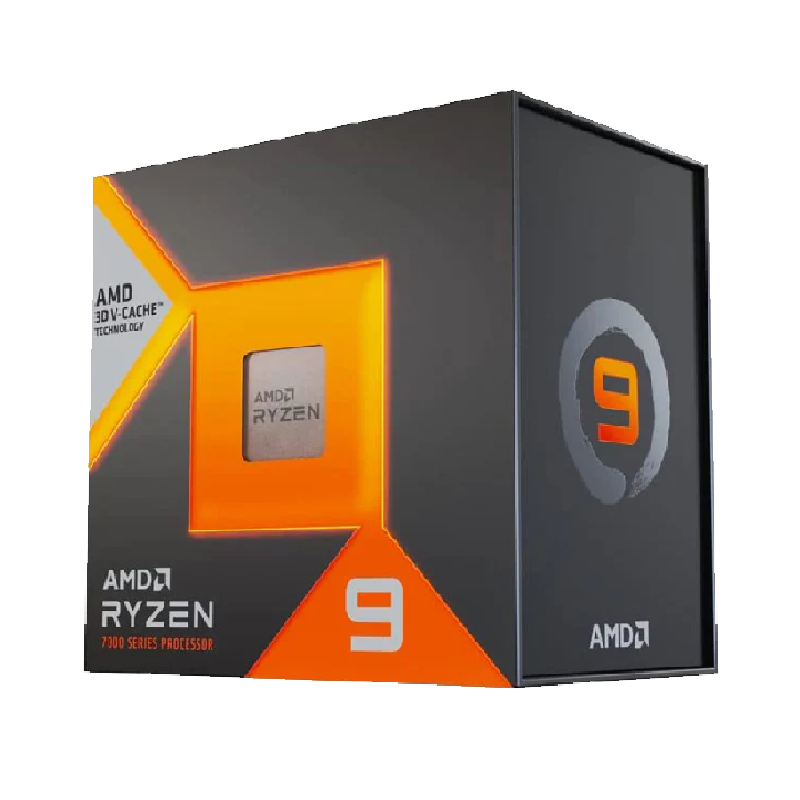

AMD Ryzen 9 7950X3D Processor (Not Sold Separately – Systems Only)

AMD Ryzen 9 7950X3D Processor –

• The Socket AM5 socket allows processor to be placed on the PCB without soldering
• Ryzen 9 product line processor for better reliability and ensure maximum productivity
• Hexadeca-core (16 Core) processor core efficiently handles data to ensure quicker transfer of information with maximum usability
• 128 MB of L3 cache memory provides excellent hit rate in short access time enabling improved system performance
• Processor with 4.20 GHz clock speed for quick and dependable processing of data to ensure maximum productivity
• Comes with AMD Radeon Graphics controller for amazing graphics output

Name
AMD Ryzen™ 9 7950X3D
Family
Ryzen
Series
Ryzen 7000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
Raphael AM5
Architecture
Zen 4
# of CPU Cores
16
Multithreading (SMT)
Yes
# of Threads
32
Max. Boost Clock
Up to 5.7 GHz
Base Clock
4.2 GHz
L1 Cache
1 MB
L2 Cache
16 MB
L3 Cache
128 MB
Default TDP
120W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
3
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
89°C
Launch Date
02/28/2023
*OS Support
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
