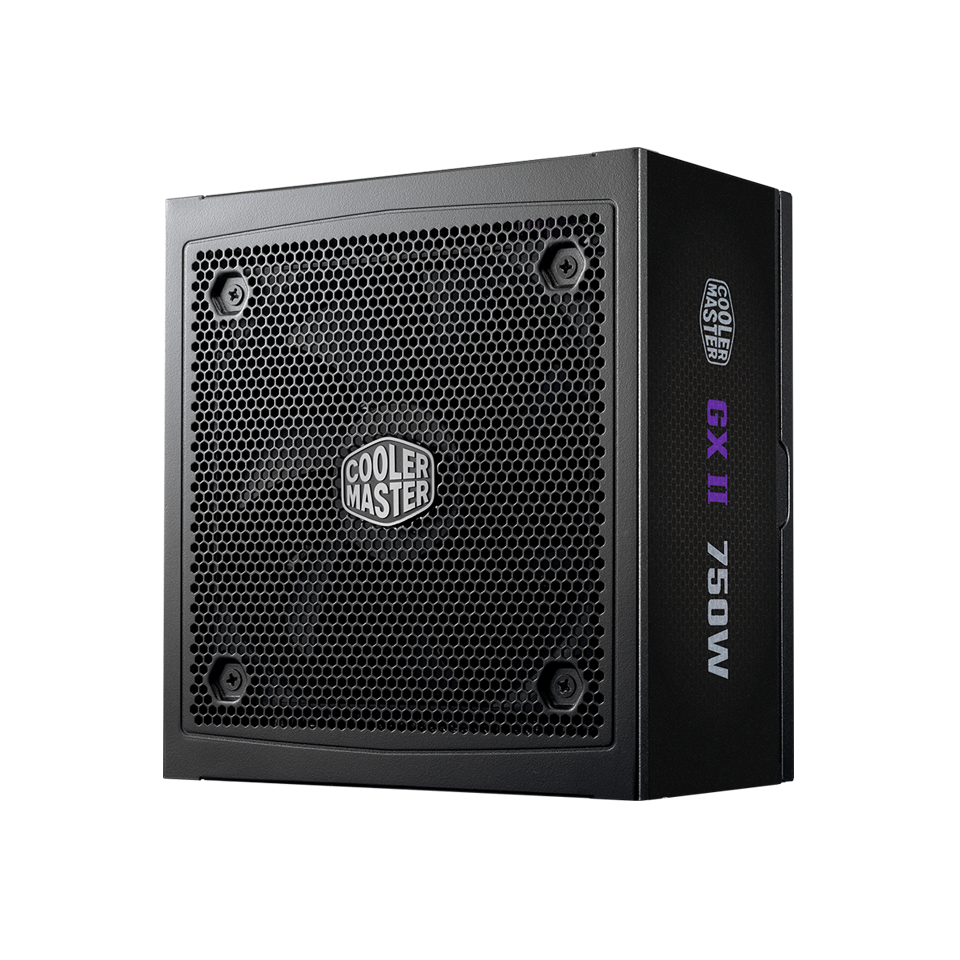

Cooler Master GX II Gold 750W Full Modular ATX 3 Power Supply

Cooler Master GX II Gold 750W Full Modular ATX 3 Power Supply

* ATX 3.0 support & a durable 12VHPWR cable

* 80 Plus Gold certified efficiency

* Silent fan performance with a zero-RPM mode

* Separated thermal technologies

* Fully modular cabling

Specifications

Model

750: MPX-7503-AFAG-2BUK

ATX Version

ATX 12V Ver. 3.0

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

2500 RPM

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-40°C

Power Good Signal

100 – 150 ms

Hold Up Time

≥16ms at 80% Load

MTBF

>100,000 Hours

Protections

OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

Regulatory

cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.)

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA Connectors

6

Peripheral 4 Pin Connectors

2

PCI-e 6+2 Pin Connectors

4

12VHPWR Connector

1

Series

GX Series

80 Plus

Gold

Modular

Fully Modular

Category

Above 750W

Form Factor

ATX

Watts

750W
