Gigabyte B550 VISION D-P AMD MOTHERBOARD B550 VISION Winsoft
Click to enlarge
Aorus Gigabyte

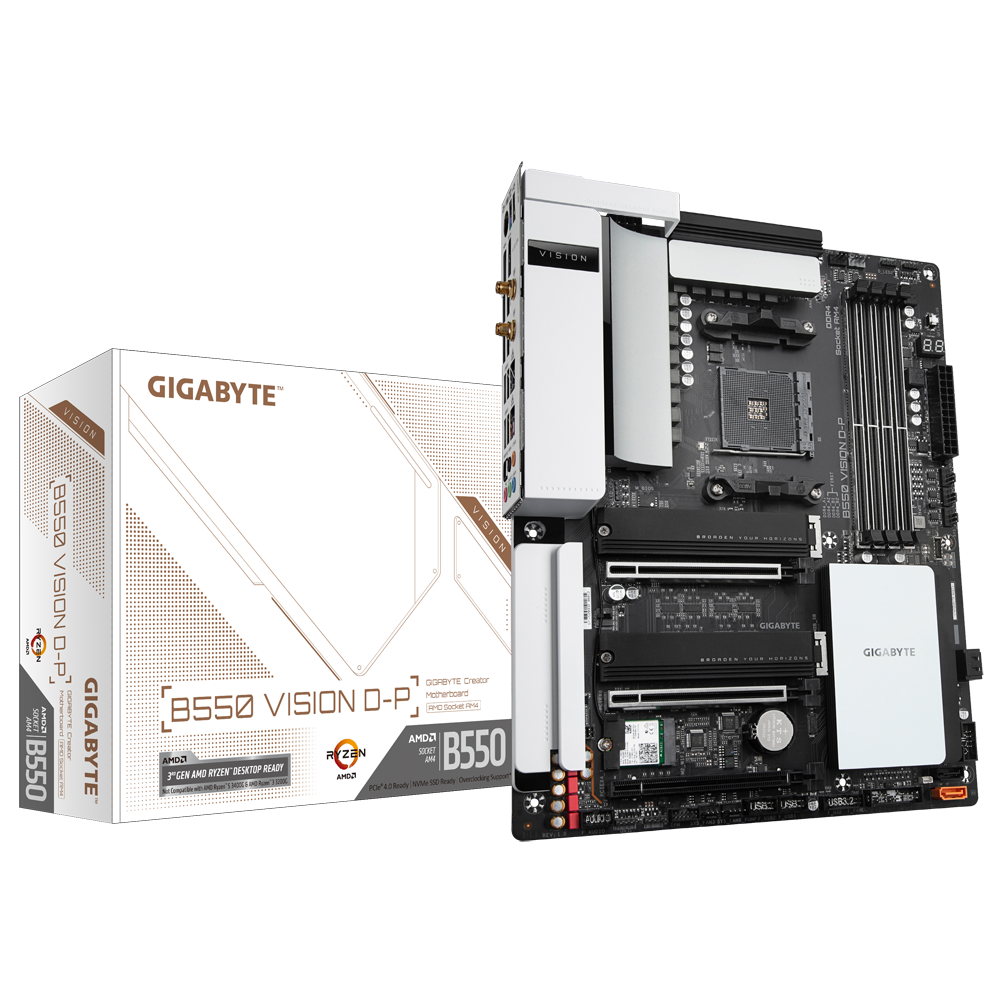

Gigabyte B550 VISION D-P AMD MOTHERBOARD

රු67,500.00 +18% VAT

or 3 X රු22,500.00 with Koko

  • Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
  • Reliability ensured by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offered by dual PCIe 4.0/3.0 x16, and one PCIe 3.0 x16 slots
  • Fully Quadro QVL Tested, limitless connectivity by Thunderbolt 3
  • High-bandwidth and low-latency network support by dual 2.5GbE Ethernet
  • Intel Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
  • Comprehensive connectivity with USB3.2 Gen 2 Type-A and Type-C connection
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Out of stock

Add to wishlist
SKU: Gigabyte B550 VISION D-P AMD MOTHERBOARD Categories: , ,
Description

Gigabyte B550 VISION D-P AMD MOTHERBOARD Specs –

  • CPU
    1. AMD Socket AM4, support for : AMD Ryzenâ„¢ 5000 Series/ Ryzenâ„¢ 5000 G-Series/ Ryzenâ„¢ 4000 G-Series and Ryzenâ„¢ 3000 Series Processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC memory (ECC mode) support varies by CPU
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor + Intel® Thunderbolt™ 3 Controller:

    1. 2 x Intel® Thunderboltâ„¢ 3 connectors (USB Type-Câ„¢ ports), supporting DisplayPort and Thunderboltâ„¢ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp
      * Because of the limited I/O resources of the PC architecture, the number of Thunderboltâ„¢ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-6, “Back Panel Connectors,” for more information.)
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    Integrated in the 3rd Generation AMD Ryzenâ„¢ with Radeonâ„¢ Graphics processors:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
    2. Realtek® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
  • Wireless Communication module

    Intel® Wi-Fi 6 AX200

    1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    1. AMD Ryzenâ„¢ 5000 Series and Ryzenâ„¢ 3000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzenâ„¢ Ryzenâ„¢ 5000 G-Series and Ryzenâ„¢ 4000 G-Series Processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

    1. 3rd Generation AMD Ryzenâ„¢ processors support PCIe 4.0 x8 mode
    2. 3rd Generation AMD Ryzenâ„¢ with Radeonâ„¢ Graphics processors support PCIe 3.0 x8 mode
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

    1. Supporting PCIe 3.0 x4 mode
      * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. AMD Ryzenâ„¢ 5000 Series and Ryzenâ„¢ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzenâ„¢ Ryzenâ„¢ 5000 G-Series and Ryzenâ„¢ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

    4 x SATA 6Gb/s connectors, integrated in the Chipset:

    1. Support for RAID 0, RAID 1, and RAID 10
  • USB

    Integrated in the CPU:

    1. 3 x USB 3.2 Gen 1 ports on the back panel
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    Chipset+Intel® Thunderbolt™ 3 Controller:

    1. 2 x USB Type-Câ„¢ ports on the back panel, with USB 3.2 Gen 2 support

    Chipset:

    1. 1 x USB Type-Câ„¢ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 1 x USB 2.0/1.1 port on the back panel

    Chipset+2 USB 2.0 Hubs:

    1. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 2 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x M.2 Socket 3 connectors
    11. 4 x SATA 6Gb/s connectors
    12. 1 x SATA DOM power connector
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-Câ„¢ port, with USB 3.2 Gen 1 support
    16. 1 x USB 3.2 Gen 1 header
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    19. 1 x serial port header
    20. 1 x Clear CMOS jumper
    21. 2 x temperature sensor headers
    22. 1 x Q-Flash Plus button

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DisplayPort In port
    3. 1 x HDMI port
    4. 2 x SMA antenna connectors (2T2R)
    5. 2 x USB 3.2 Gen 2 Type-A ports (red)
    6. 2 x Thunderboltâ„¢ 3 connectors (USB Type-Câ„¢ port, with USB 3.2 Gen 2 support)
    7. 3 x USB 3.2 Gen 1 ports
    8. 2 x USB 2.0/1.1 ports
    9. 2 x RJ-45 ports
    10. 1 x optical S/PDIF Out connector
    11. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
Additional information
Brand

Aorus

,

Gigabyte
Chipset

AMD B550
Socket type

AMD AM4
Warranty

03 Years
