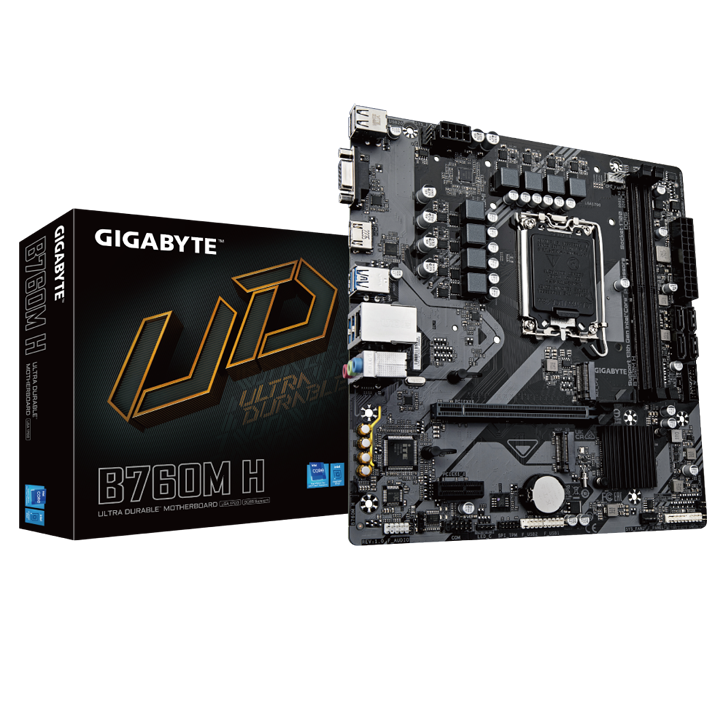

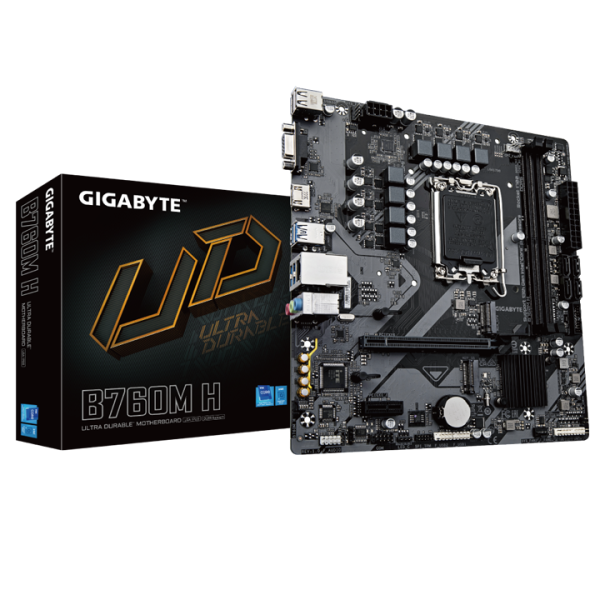

Gigabyte B760M H DDR5 Ultra Durable Motherboard

 Gigabyte B760M H DDR5 Ultra Durable Motherboard Specification –

The Gigabyte B760M H DDR5 Ultra Durable Motherboard is a high-performance motherboard that is perfect for gamers, creative professionals, and anyone else who needs a reliable and durable motherboard. The Gigabyte B760M H DDR5 Ultra Durable Motherboard features an Intel LGA 1700 socket, support for 13th and 12th Gen Intel Core processors, and a hybrid 8+1+1 phases digital VRM solution. The B760M H DDR5 also supports dual channel DDR5 memory, up to 4 modules, with XMP memory module support.

The Gigabyte B760M H DDR5 Ultra Durable Motherboard is available now at Winsoft.lk, Sri Lanka’s largest gaming laptop store.

• CPU
  LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU
  (Please refer to “CPU Support List” for more information.)
• Chipset
  Intel ® B760 Express Chipset
• Memory
  1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out
• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots
  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
  CPU:
  – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  – 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
  Chipset:
  – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header
  1 x Clear CMOS jumper
• Back Panel Connectors
  2 x USB 2.0/1.1 ports
  1 x D-Sub port
  1 x HDMI port
  4 x USB 3.2 Gen 1 ports
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
  Micro ATX Form Factor; 23.0cm x 21.5cm
