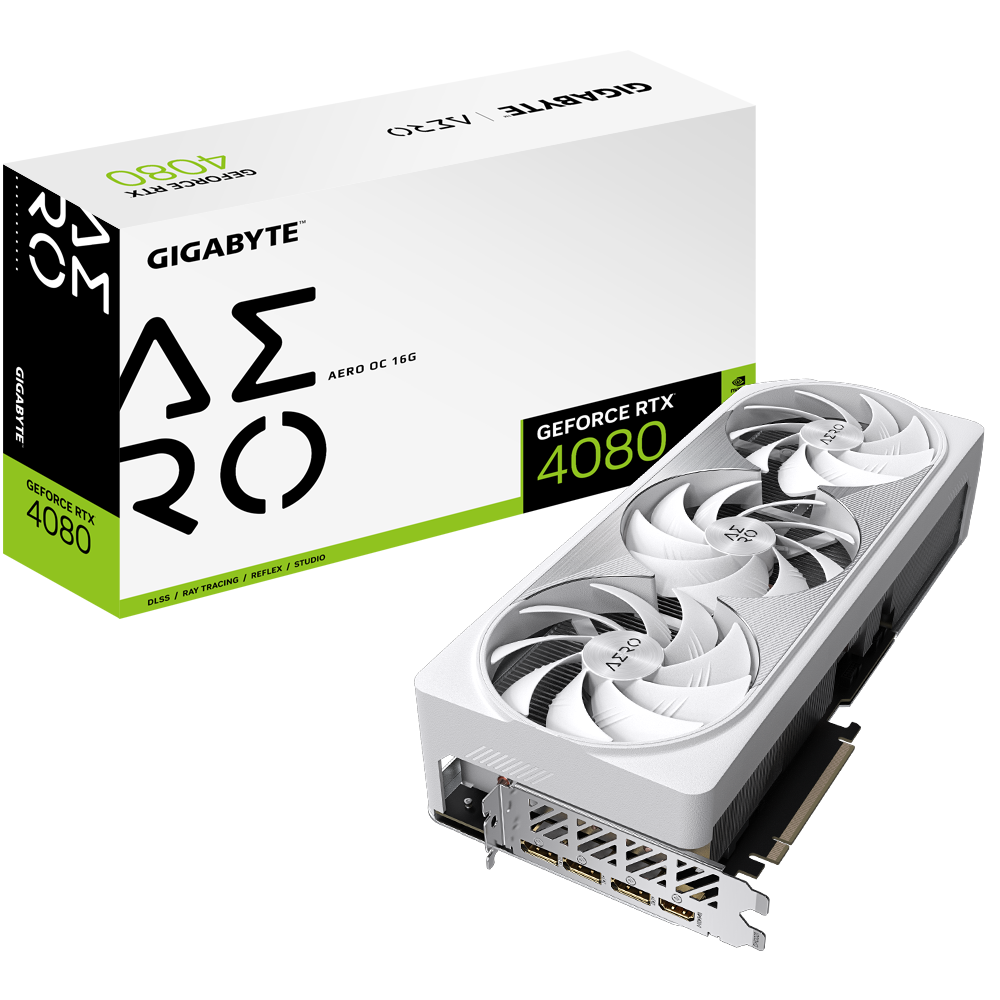

GIGABYTE GEFORCE RTX 4080 16GB AERO OC GRAPHIC CARD

• NVIDIA Ada Lovelace Streaming Multiprocessors:
  Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 2X AI performance
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4080 16GB
• Integrated with 16GB GDDR6X 256-bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS
• Protection metal back plate
• Anti-sag bracket

The WINDFORCE cooling system in the Gigabyte GeForce RTX 4080 16GB Aero OC features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

Reduce the turbulence of adjacent fans and increase airflow pressure in the Gigabyte GeForce RTX 4080 16GB Aero OC.

The Unique Fan Blade in the Gigabyte GeForce RTX 4080 16GB Aero OC makes airflow to spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

The Gigabyte GeForce RTX 4080 16GB Aero OC turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

Extended heatsink design in the Gigabyte GeForce RTX 4080 16GB Aero OC allows air flow to pass through, providing better heat dissipation.

The large vapor chamber in the Gigabyte GeForce RTX 4080 16GB Aero OC directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

The metal back plate in the Gigabyte GeForce RTX 4080 16GB Aero OC not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 2x AI performance
• 3rd Generation RT Cores: Up to 2x ray tracing performance
• Powered by GeForce RTX 4080 16GB
• Integrated with 16GB GDDR6X 256-bit memory interface
• WINDFORCE Cooling System, RGB Fusion, Dual BIOS, Protection metal back plate, Anti-sag bracket

Gigabyte GeForce RTX 4080 16GB GAMING OC  Specification –

• Graphics Processing
  GeForce RTX™ 4080

• Core Clock
  2535 MHz (Reference Card: 2505 MHz)

• CUDA® Cores
  9728

• Memory Clock
  22.4 Gbps

• Memory Size
  16 GB

• Memory Type
  GDDR6X

• Memory Bus
  256 bit

• Card Bus
  PCI-E 4.0

• Digital max resolution
  7680×4320

• Multi-view
  4

• Card size
  L=342 W=150 H=75 mm

• PCB Form
  ATX

• DirectX
  12 Ultimate

• OpenGL
  4.6

• Recommended PSU
  850W

• Power Connectors
  16 pin * 1

• Output
  DisplayPort 1.4a *3
  HDMI 2.1 *1
