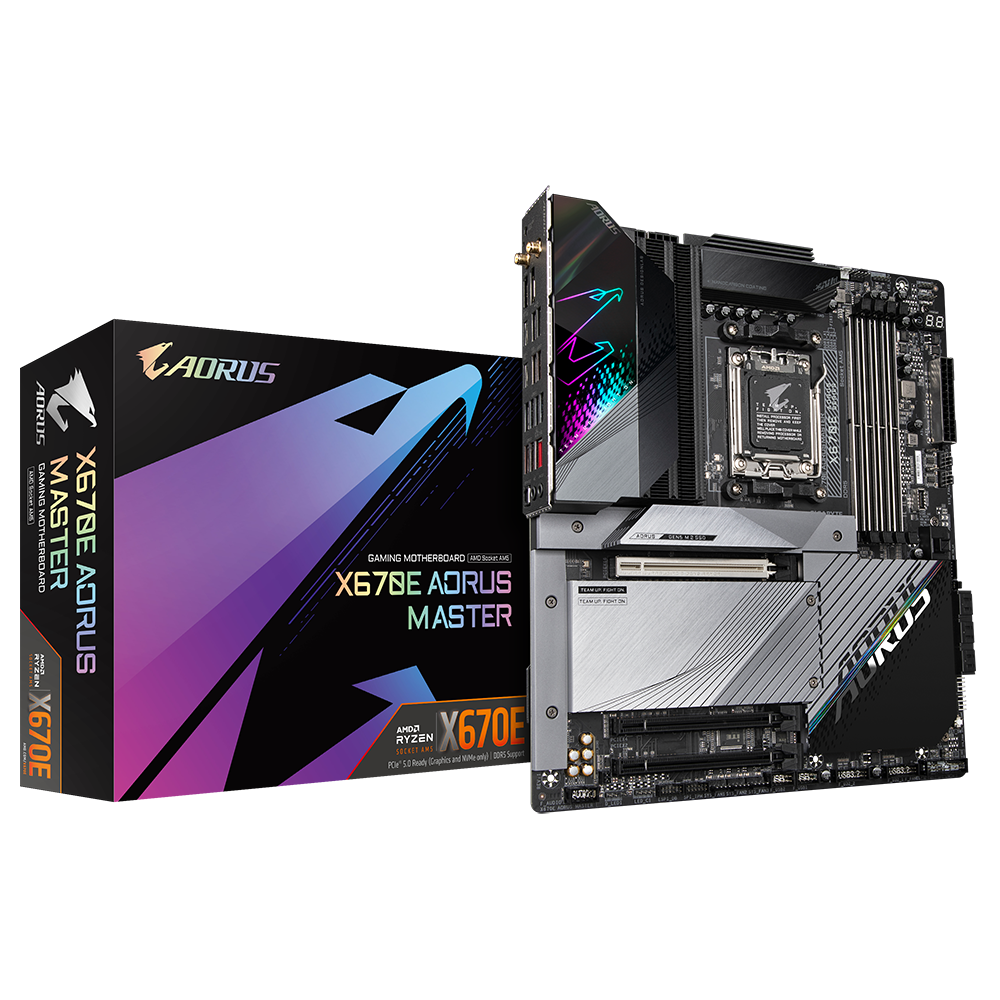

Gigabyte X670E Aorus Master Motherboard

X670E AORUS MASTER Specification –

1. AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)

1. AMD X670

1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

(Please refer “Memory Support List” for more information.)

1. 1 x DisplayPort, supporting a maximum resolution of 3840×[email protected] Hz
   * Support for DisplayPort 1.4 version and HDR.
2. 1 x USB Type-C^® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×[email protected] Hz
   * Support for DisplayPort 1.4 version and HDR.
3. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel output
   * You can change the functionality of an audio jack using the audio software. To configure
   7.1-channel audio, access the audio software for audio settings.
5. Support for S/PDIF Out

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   (Actual data rate may vary depending on environment and equipment.)

1. 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
   * Actual support may vary by CPU.
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
   * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
   * Actual support may vary by CPU.
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
   * Actual support may vary by CPU.

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
2. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

1. 2 x USB 2.0/1.1 ports on the back panel

Chipset:

1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
4. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

1. 4 x USB 3.2 Gen 1 ports on the back panel

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x THB_U4 add-in card connector
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
20. 1 x power button
21. 1 x reset button
22. 1 x reset jumper
23. 1 x Clear CMOS jumper
24. 2 x temperature sensor headers
25. Voltage Measurement Points

1. 1 x Q-Flash Plus button
2. 2 x SMA antenna connectors (2T2R)
3. 1 x DisplayPort
4. 1 x HDMI port
5. 1 x USB Type-C^® port (DisplayPort), with USB 3.2 Gen 2 support
6. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
7. 4 x USB 3.2 Gen 2 Type-A ports (red)
8. 4 x USB 3.2 Gen 1 ports
9. 2 x USB 2.0/1.1 ports
10. 1 x RJ-45 port
11. 1 x optical S/PDIF Out connector
12. 2 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
7. Noise detection

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
4. Support for Smart Backup

1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. E-ATX Form Factor; 30.5cm x 26.9cm
